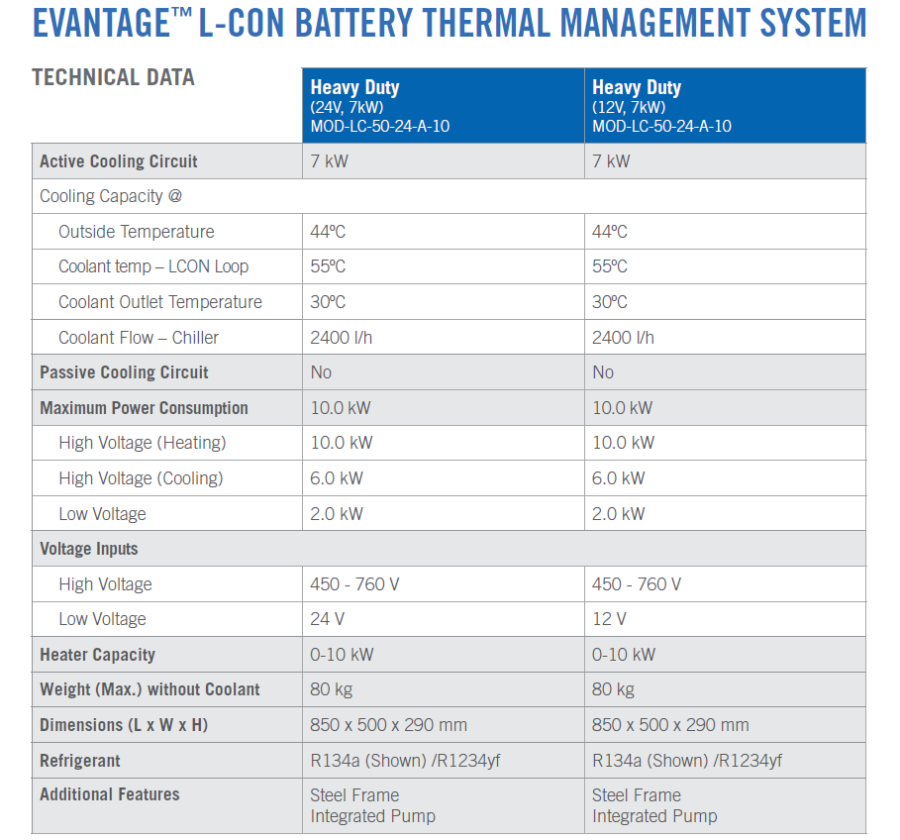

EVANTAGE™ L-CON BATTERY THERMAL MANAGEMENT SYSTEM
(LIQUID-COOLED CONDENSER)

Combining proprietary Modine® heat exchanger technology with tailored smart electronic products, the EVantage™ Battery Thermal Management System with Liquid-Cooled Condenser (L-CON BTMS) delivers a complete solution, including a master thermal controller and Modine-developed firmware.  The L-CON BTMS is debris and dirt intrusion resistant in rugged environments, delivering the right fit for space-constrained chassis used in harsh applications.

Complete Solution for Cooling and Heating to Fit Tight Spaces

With both cooling and heating circuits, the EVantage L-CON BTMS optimizes the temperature range for an entire bank of batteries with a single unit in all types of environments –from hot summer afternoons to icy winter mornings. The L-CON BTMS uses the vehicle’s Electronics Cooling Package (ECP) to reject heat to ambient air, allowing the BTMS system to be placed anywhere on the chassis.

EV_BTMS_Schematic_FNL2_RGB

The master smart control system of the L-CON BTMS uses the battery pack or coolant temperature. It automatically selects the mode of operation to meet the batteries’ heating and cooling needs. It efficiently uses the coolant temperature sensor to adjust the coolant flow.

image001 (16)

Plug and Play for Fast Integration

EVantage systems are designed for fast and easy integration into your chassis. All necessary heat exchangers, smart electric products, wiring and hoses are included, as well as a master controller and tailored firmware to provide complete operation upon delivery.

Our team of Modine application engineers will validate that one of our standard configuration systems meets your needs or customize a design to fit your application.

Excavator,In,Construction,Site,On,Sunset,Sky,Background

Designed for Heavy Duty Operation

Verified to meet the most stringent validation testing, EVantage systems have been proven to withstand heavy vibration environments with Modine-fabricated rugged, anti-corrosive enclosures and flexible, vehicle-grade wiring harnesses and refrigerant hoses.

Avoid Roadside Breakdowns

Each EVantage system is designed with redundancy in critical operations and fail-safe features to minimize field breakdowns. To find and fix issues before they occur, the system offers continuous datalogging of DM1 & DM2 faults and tracks the accumulated runtime on each component, enabling preventative maintenance. When a repair is needed, the included EVantage Maintenance and Diagnostics software makes it easy to find and fix the failure.

Engineer,And,Worker,Planning,For,Construction,Building,And,Renovate,In
SeeThroughTruckComp_REV2

Designed to Fit Any Chassis

From Delivery Vans to Class 8 Trucks to Buses, Modine is ready to design a solution to meet the space constraints of any size chassis, from minor modifications of existing configurations to fully custom systems.

This Product is Buy America Compliant

This product is Buy America Compliant. This product was engineered and tested in Racine, WI. Manufactured in Lawrenceburg, TN, with 70% domestic content, our products are American OEMs’ preferred choice.

MODINE_BUYAMERICACOMPLIANT_RGB
Corporate_RGB

Save Time with Validation Testing by Modine

With a state-of-the-art testing facility in Wisconsin, Modine offers comprehensive validation testing inhouse, from vehicular wind tunnel testing to component-level performance testing. Full vehicle vibration, pressure and thermal life cycle testing can be completed as well. Over the 100 years Modine has been in business, we have developed and perfected tests to verify design and replicate in-field experiences.

Evantage Thermal Systems Features

AdobeStock_317968458
Durable – Ready to withstand any environment, no matter how dirty or rugged
Icon_Reliable

Reliable – Modine patented fail-safe system for maximum system reliability

Icon_Flexible
Flexible – It’s small size makes it easy to fit in any chassis
Icon_Convenient

Convenient – Included master thermal controller with Modine-developed firmware and SAEJ1939 CAN communications

Icon_WeatherSafe

Weather Safe – Designed for harsh environments – IP67 ingress protection, corrosion resistant materials, fully sealed wiring harness, rigorous validation testing

Icon_EasyMaintenance

Easy Maintenance – Included Maintenance and Diagnostics Software for system monitoring, diagnostics message data logging and preventative maintenance tracking

CityBus
Avoid roadside breakdowns and ensure dependable operation of your bus with our efficient, high reliability thermal systems
Transit & Coach Bus
AdobeStock_67867627-grey
Ensure a long life for your truck despite harsh environments and heavy vibration use with our robust, proven thermal systems
Truck
DeliveryTruck
Fit the tight space constraints and extended range requirements of your delivery van with our compact thermal systems
Delivery Van
Excavator_icon
Maximize a work day with durable, energy efficient thermal systems for all loads
Off-Highway
